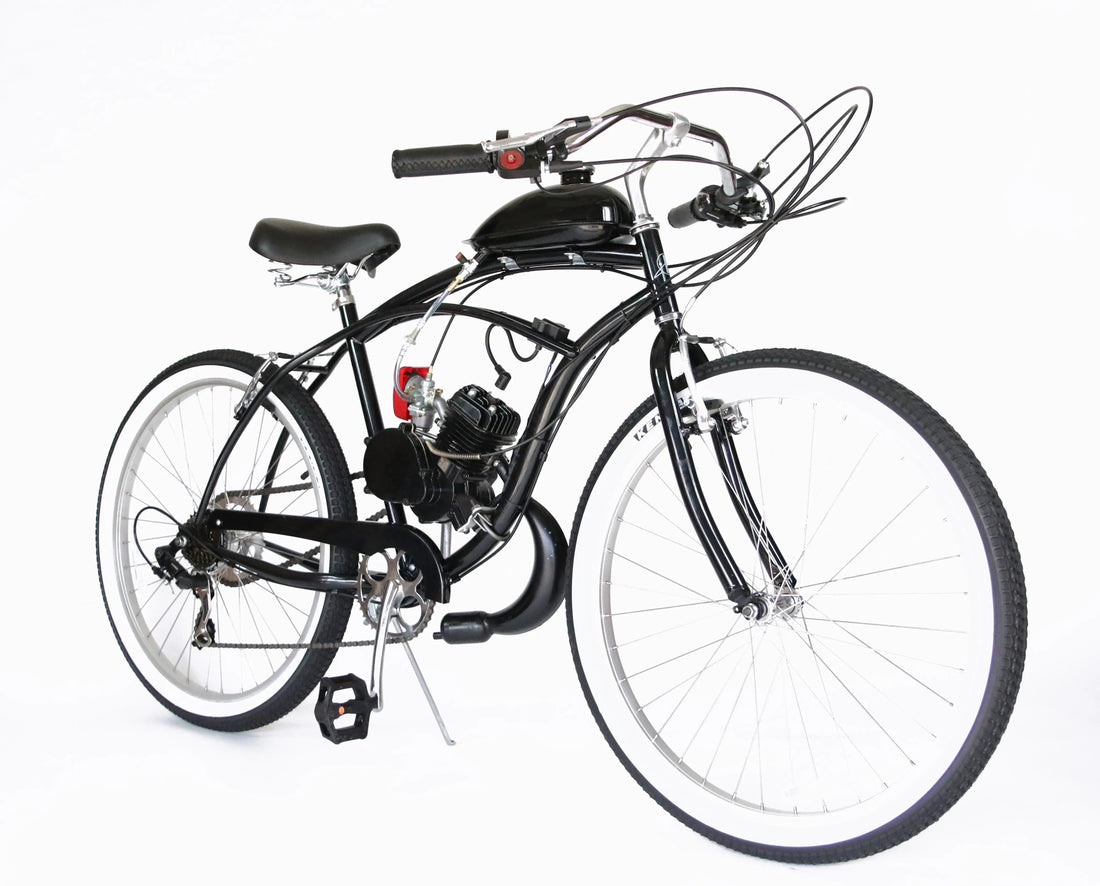

Wondering how to install motorized bicycle kit on your 2-stroke bike to add that extra boost of power? Installing a motorized bicycle kit may seem daunting at first, but with the right tools and clear instructions, you can transform your bike into a motorized machine efficiently and safely. This step-by-step guide focuses on 2-stroke engine kits, walking you through every phase of installation, from mounting the engine to wiring the electrical components. Whether you’re a seasoned DIYer or a novice, following these instructions will help you get your project rolling smoothly.
Preparing Your Bike and Tools for Installation
Choosing the Right Bicycle
Before you dive into the installation, it’s crucial to ensure your bike is compatible with the 2-stroke motorized bicycle kit. Ideally, your bike should be a sturdy male beach cruiser, road bike, or hardtail mountain bike. Check that the frame tubes measure between 25 to 28mm in diameter and have a V-shaped open front frame for easy mounting of the engine. Additionally, you want at least 9-11 inches of clearance between the bottom bracket and top bar to accommodate the motor without interference.
Gathering Essential Tools
Having the proper tools will streamline the installation process. Essential tools include:
- Socket wrench set (especially 10mm sockets)
- Phillips and flathead screwdrivers
- Adjustable wrench
- Motorcycle chain breaker tool
- Grease or lubricant
- Zip ties and cable clamps
- Drill with a 1/4-inch drill bit (for throttle assembly)
How to Install Motorized Bicycle Kit: Step 1 - Mounting the Engine
Engine Placement and Frame Compatibility
Start by positioning the 2-stroke engine inside the bike frame’s triangle. If your frame requires it, install vibration motor mounts or u-mount brackets first to secure the engine firmly and reduce shaking. These mounts compensate for varying frame sizes and provide stability, ensuring the engine sits flush with the frame.
Securing the Motor
Once in position, bolt the engine to the frame using the provided motor mount studs and nuts. Tighten all fasteners evenly and confirm the engine is firmly secured before moving on. This stage is vital because a loose motor can cause mechanical failures or safety hazards while riding.
Installing the Clutch and Chain System
Clutch Lever and Cable Setup
Remove the handlebar grips to mount the clutch lever. Insert the clutch cable’s beaded end into the lever socket just like a brake cable. Secure the cable on both ends, including on the clutch arm attached to the motor. The clutch spring and heat shield spring keep tension on the cable, so install these carefully and adjust cable tension for smooth engagement and disengagement.
Chain Measurement and Installation
For the chain, first remove the clutch case cover and drive sprocket case cover to make installation easier. Measure the chain to fit the distance between the motor sprocket and rear wheel sprocket, allowing about 0.5 inches of slack to avoid tension that might snap the chain. Use a motorcycle chain breaker tool to remove excess links and reattach using the master link.
- Align the chain along the sprockets ensuring it runs straight to prevent slippage
- Reinstall the protective covers and check for smooth rotation
- Install the chain guard securely but make sure it doesn’t interfere with the chain movement
Throttle and Carburetor Assembly
Throttle Grip and Kill Switch Installation
Slide the throttle grip and kill switch onto the handlebar, marking where to drill a 1/4-inch hole for the kill switch pin. Assemble the throttle cable by threading it through the kill switch housing and throttle grip ports, then fix the kill switch onto the drilled hole securely. This setup controls engine speed and provides an emergency engine shutoff.
Carburetor Setup and Attachment
Prepare the carburetor by assembling the plunger, jet needle, spring, and screw top according to the manufacturer’s instructions. Thread the throttle cable into the carburetor’s plunger port, ensuring proper alignment for smooth throttle response. Slide the carburetor onto the intake manifold and tighten the mounting clamps. Adjust the carburetor angle so the float bowl remains level, ensuring proper fuel flow during operation.
Electrical Wiring and Final Component Installation
Connecting CDI, Magneto, and Kill Switch
The motorized kit includes electrical parts: the CDI, magneto, and kill switch. Connect the black wires from both the CDI and magneto, along with the green kill switch wire, to complete the grounding circuit. Then connect the blue CDI wire to the magneto’s blue wire along with the yellow/red kill switch wire. Wire colors might vary, so refer to your kit manual for exact wiring and use insulated connectors to prevent shorts.
Installing Muffler, Gas Tank, and Safety Accessories
Attach the muffler to the front of the motor head opposite the carburetor. Mount the gas tank along the top bar of the frame using provided brackets, connect the fuel valve, and run the fuel line to the carburetor’s fuel port. Lastly, secure the chain guard and inspect all clamp points for tightness. There’s an optional recommendation to upgrade your bike’s brakes to disc or caliper types for safety, as the motorized bike will reach higher speeds.
Testing and Breaking In Your Motorized Bicycle Kit
Initial Motor Test Run
Before taking your bike on the road, perform a static test. Engage the clutch, turn on the kill switch, and use the throttle to start the motor. Observe the engine running smoothly without unusual noises or vibrations. Check the chain tension again and ensure no components interfere with moving parts.
Recommended Break-In Procedure
Properly breaking in your 2-stroke engine extends motor life. Use a 6 oz oil to 1 gallon gas fuel ratio for the first few hours of running. After the initial break-in, adjust to a leaner 4-5 oz oil ratio as recommended by your engine manufacturer. Regularly monitor engine temperature and listen for changes in performance during this period.
Conclusion: Successfully Installing Your Motorized Bicycle Kit
In summary, knowing how to install motorized bicycle kit involves careful preparation, mounting the engine securely, setting up the clutch and chain, assembling the throttle and carburetor, wiring the electrical components, and running a proper break-in procedure for your 2-stroke bike. By following these detailed steps, you’ll enjoy the enhanced power and freedom a motorized bicycle kit offers. Ready to get started? Explore quality motorized bicycle kits and additional accessories to ensure your installation is smooth and your ride is safe.
